Are ‘Quality by Design’ and ‘Six Sigma’ the same concept?

Published
Updated

In quality management, we frequently hear two concepts thrown around; Quality by Design (QbD) and Six Sigma. These two terms are sometimes confused with each other or used interchangeably. So, what exactly are Quality by Design and Six Sigma, and are they the same thing?

The short answer…no, but they’re similar!

Read on to find out why that is.





What is Quality by Design (QbD)?

Quality by Design (QbD) is a structured and risk-based process for designing and launching high quality products. Quality by Design applies proven methods to close the gaps that often cause issues in traditional production processes, such as

  • A gap between what the producer thinks the customer needs and what the customer actually needs
  • A gap between what the producer thinks the customer needs and what is actually designed
  • A gap between the design and the actual production or execution.

In the official guidelines, QbD is defined as: ‘a systematic approach to development that begins with predefined objectives and emphasizes product and process understanding and process control, based on sound science and quality risk management.’  Quite the mouthful!

The elements that make up QbD include:

  • Quality Target Product Profile (QTPP)
  • Critical Quality Attributes (CQAs)
  • Critical Material Attributes (CMAs)

The QTPP and the CQAs can together be termed key performance indicators (KPIs)

Since QbD is a risk-based approach, the FDA expects manufacturers to assess the root cause for every possible event of deviation from these KPIs and to identify the CPPs or the CMAs which cause this deviation. Manufacturers are expected to build a knowledge space around how these QTPP, CQAs, CMAs, and CPPs are interrelated. This knowledge space can be built using literature, know-how in similar products, empirical experiments, Design of Experiments, or any other statistical modeling approaches.

Soon after the first official guidelines on QbD were released, quality practitioners started evaluating this approach against existing quality management philosophies, including Six Sigma

This was probably because of the recommendation to use statistical modeling approaches for product development, and Six Sigma relies heavily on statistical approaches for measuring and producing quality products.





What is Six Sigma?

Invented by a scientist who worked at Motorola in the 1980s, Six Sigma systematically gets rid of inefficiencies and defects (variations) by detecting them through statistical analysis. It’s a methodology that helps make data-driven improvement decisions, rather than relying on guesswork.

The name ‘Six Sigma’ is derived from the bell curve used in statistics where one Sigma represents one standard deviation away from the mean. The defect rate is extremely low if the process only shows six of these Sigma’s, three above the mean and three below. That’s because only 3.4 out of a million events along a bell curve would fall outside of six standard deviations. In other words, an error or defect only occurs about three times in a million, statistically speaking! So, Six Sigma is a performance metric that corresponds to 3.4 defects per million units or opportunities.

Confusingly enough, Six Sigma also refers to a management strategy for the organization-wide deployment of improvement projects, which is out of this article’s scope but can be read about in more detail here. In brief, the ultimate goal of a Six Sigma project is to improve the quality of a product, process, or service while providing management principles to accomplish this goal.





What’s the difference between Six Sigma and QbD?

Quality by Design (QbD) and Six Sigma are two distinct yet similar approaches. Mainly, the ultimate goal of a Six Sigma project is somewhat different from the ultimate goal of a QbD project.

In a QbD project, the therapeutic efficacy of the product and patient safety are more important than commercial success. In other words, it’s an FDA proposed quality management approach that focuses on delivering the best quality product to the patient irrespective of cost-benefit to the manufacturer.

Nonetheless, although the QbD strategy was first envisioned for the benefit of the patients, it indirectly helps manufacturers to make robust products that are less likely to be rejected, recalled, or fail. Following the QbD strategy enables manufacturers to produce sustainable products as they will get less product recalls and import alerts.

Now comes the interesting part! Although Six Sigma and QbD are separate concepts, they can be used as a fused approach

If QbD is implemented using the DMAIC (Define-Measure-Analyse-Improve-Control) philosophy of Six Sigma then manufacturers can benefit from the best of both worlds. This is how it’s done:

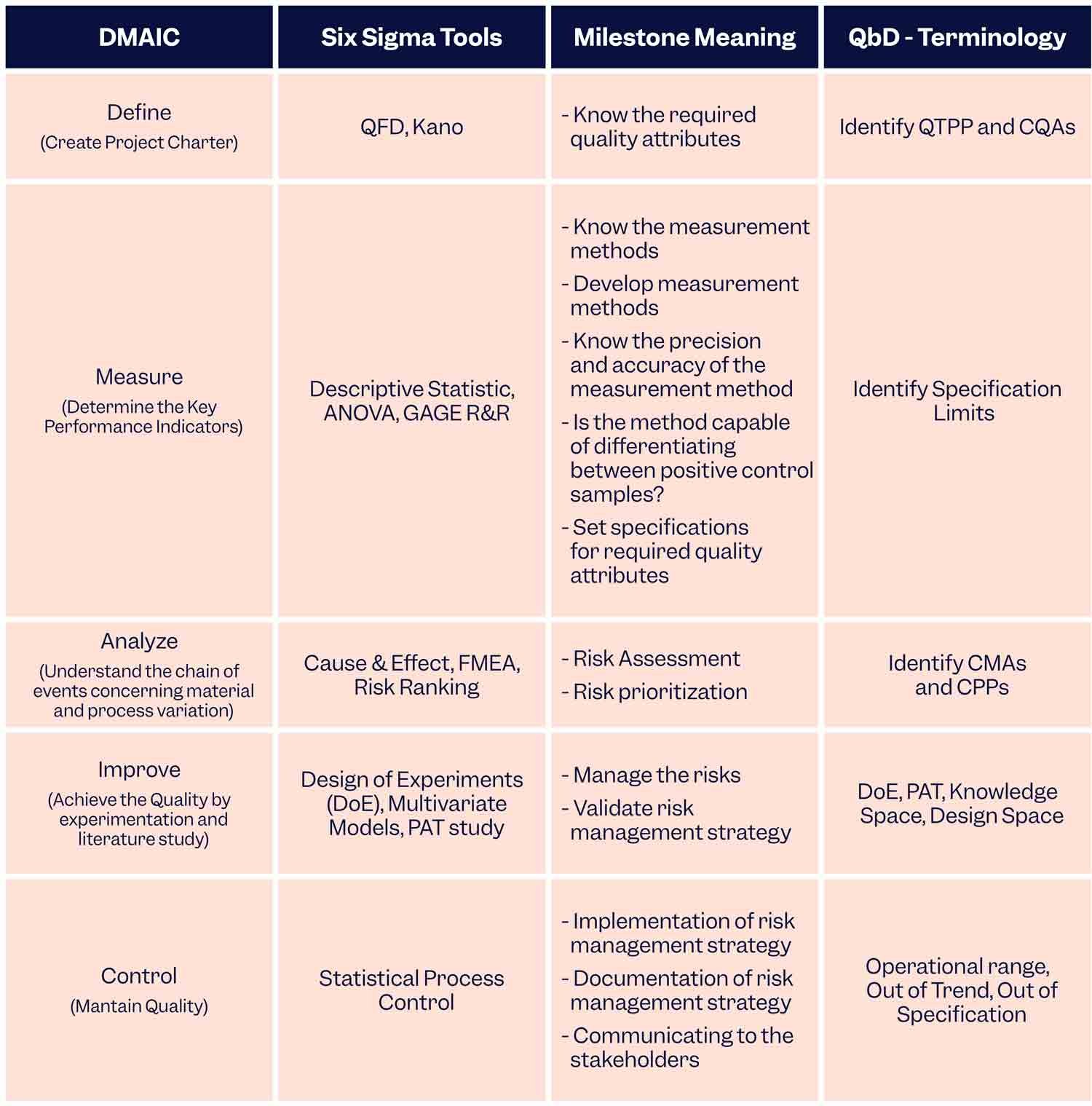

Comparison table for DMAIC and Six Sigma Tools





To Sum Up

Quality by Design and Six Sigma are two approaches to quality improvement that have slightly different end objectives. In any case, if manufacturers use the Six Sigma philosophy to get the cost-benefit and structured approach for organization-wide governance of QbD principles, then they create a win-win situation for the patients as well as themselves.
